The bathroom is the most frequently used place in the home and the place where the most attention is paid to decoration and design.
Today I will mainly talk to you about how to layout the bathroom to get the maximum benefit.
Washing area, toilet area, and shower area are the three basic functional areas of the bathroom. No matter how small the bathroom is, it should be equipped. If the bathroom is large enough, the laundry area and bathtub can also be included.

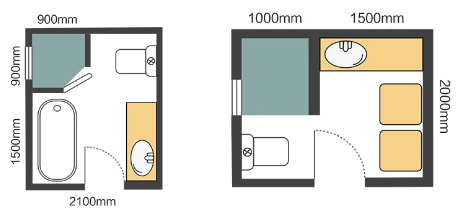

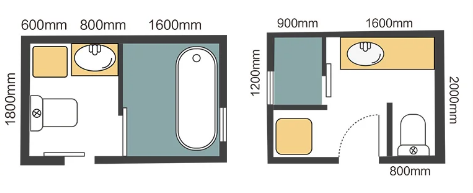

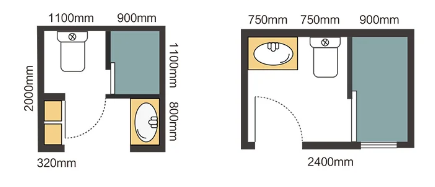

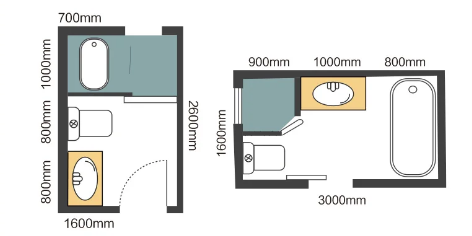

For the size design of the three basic bathroom partitions, please refer to the following
1. Washing area:
The entire sink must occupy at least 60cm*120cm
The width of the wash basin is 60-120cm for a single basin, 120-170cm for a double basin, and the height is 80-85cm.
Bathroom cabinet width 70-90cm
Hot and cold water pipes should be at least 45cm above the ground
2.Toilet area:
The overall reserved space should be at least 75cm wide and 120cm long
Leave at least 75-95cm of activity space on both sides to allow easy entry and exit.
Leave at least 45cm of space in front of the toilet for easy leg placement and passage
3. Shower area:
shower head
The entire shower area must be at least 80*100cm
It is more appropriate for the height of the showerhead to be 90-100cm from the ground.
The left and right spacing between hot and cold water pipes is 15cm
tub
The overall size is at least 65*100cm, and it cannot be installed without this area.
laundry area
The overall area is at least 60*140cm, and the location can be selected next to the sink.
The socket should be slightly higher from the ground than the water inlet. A height of 135cm is suitable.
